Deluxe Industrial Steel Shelving systems from Western Pacific are the proven solution for maximizing space and maintaining organization in demanding industrial and e-commerce operations. Known as “The Original Box Shelf,” Deluxe provides unparalleled strength and adaptability for medium and heavy-duty storage.
Our expert engineering ensures that you receive the most cost-effective and structurally sound system available. Whether you are consolidating an expanding operation or constantly reconfiguring for changing e-commerce SKUs, Deluxe is engineered to deliver enhanced stability and high-performance capacity.
Unmatched Performance & Durability:
- High-Performance Capacity: Support loads from 350 lbs. up to 1,000 lbs. per shelf. The unique “Original Box Shelf” design uses lapped and welded shelf corners for enhanced stability across all gauges (24, 22, 20, or 18-gauge).
- Seismic Ready: Deluxe is one of the few medium and heavy-duty industrial shelving systems specifically engineered to meet demanding seismic specifications.
- High-Density Versatility: A wide variety of post and shelf configurations allows Deluxe to effectively solve storage issues in everything from small backrooms to large distribution centers.
- Future-Proof Expansion: Easily support multi-level systems, catwalks, and high-rise applications. Install 9′ tall Deluxe today, knowing the system can be confidently expanded higher later, using our specialized High-Rise Box Posts.
- Specialized Applications: Ideal for wire-guided man-aboard order-picker applications, offering added strength and durability with seismic multi-level capabilities.
The Deluxe Original Box Shelf System
The Deluxe system is built around The Original Box Shelf, designed to be the strongest shelf available. All upright posts are roll-formed from heavy-gauge steel, offering 1″ vertical shelf adjustability and available in one-piece lengths up to 18′ high.
Post Designs

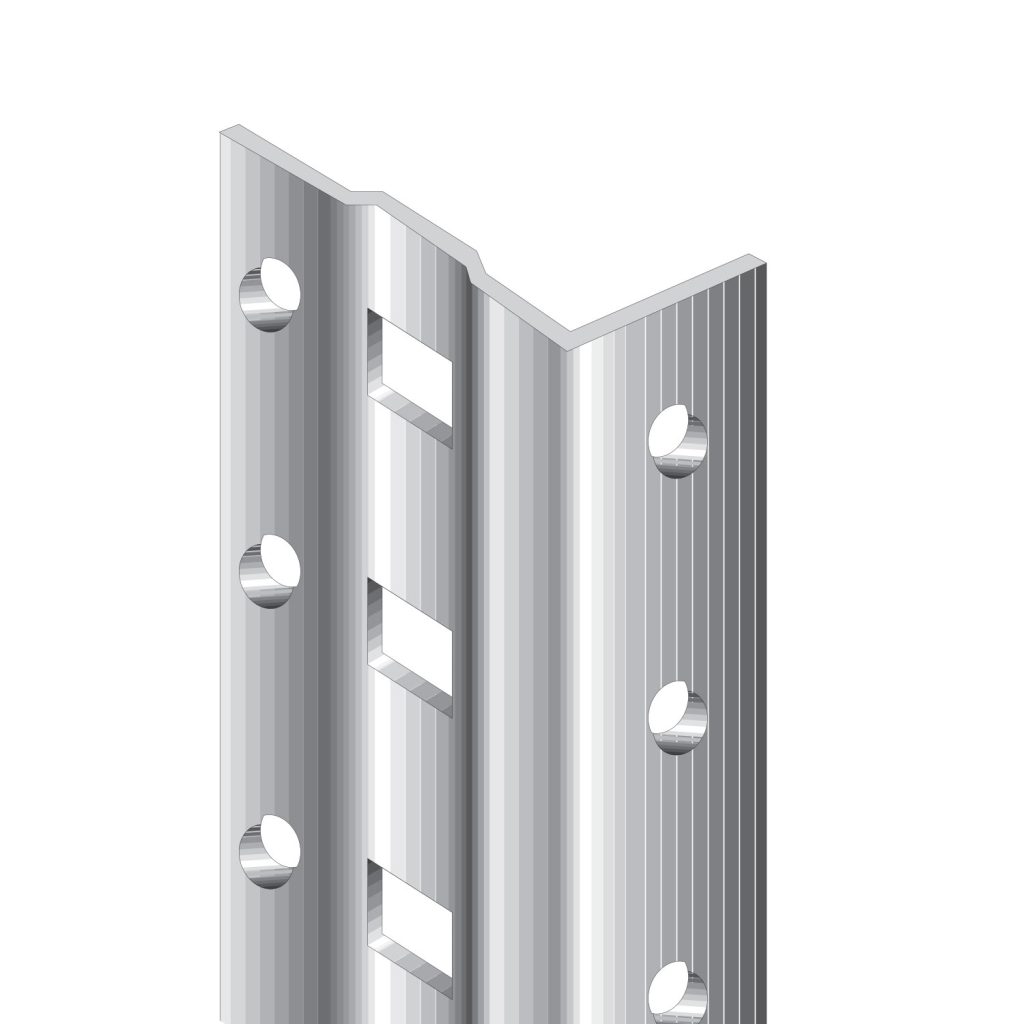

Angle Post
- 13-gauge steel
- Our most popular style
- Stiffening offset rib-ideal for seismic applications
- Always used as rear posts in combination with other posts
- Shelf access is reduced by 2″

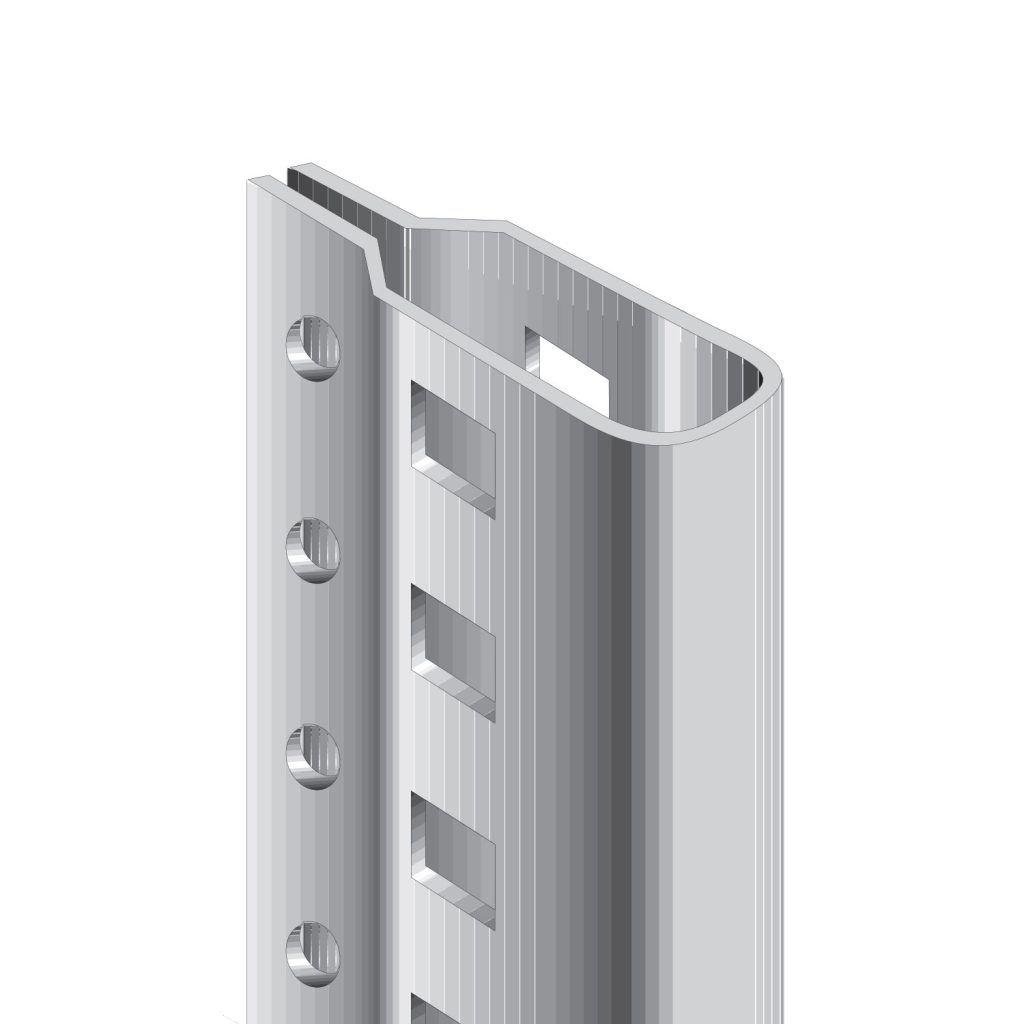

Beaded Post
- 13-gauge steel
- Double-sided design with independent shelf positioning – ideal as common posts between multiple units
- Maximum weight-bearing capacity for heavy-duty and multi-level applications
- Unobstructed shelf access.
- Shelf slips in and out without tilting, facilitating fast installation and rearrangement

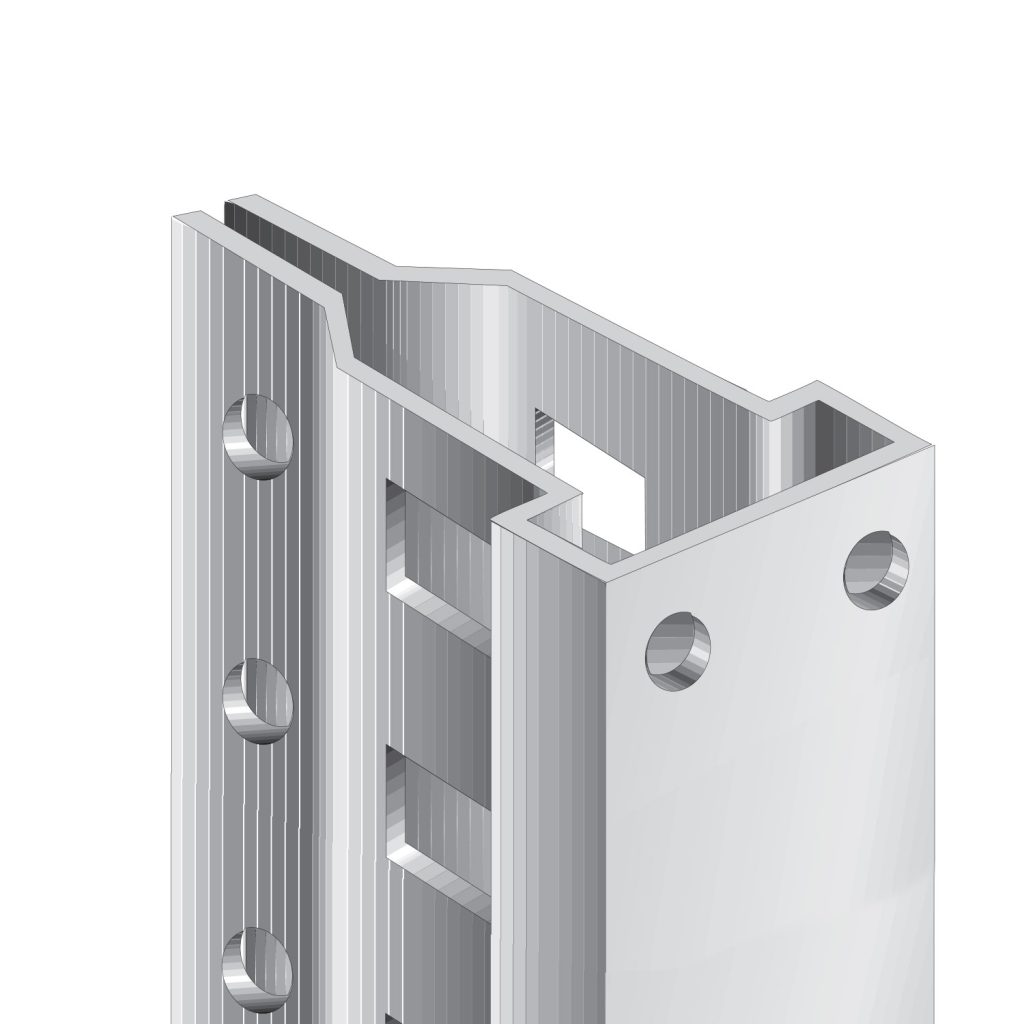

High-Rise Box Post
- 14-gauge steel
- Double-sided design with independent shelf positioning – ideal for common posts between multiple units
- Perfect for heavy applications like record storage, seismic applications, and multi-level systems
- Save space and material on multi-level systems by using the High Rise Box Post on the first level, and splicing a beaded post above.
- Shelf access is reduced by 2″

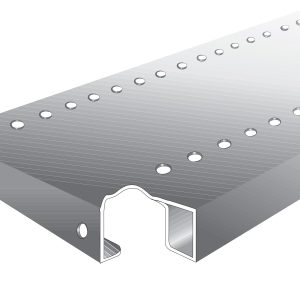

Original Box Shelf Construction
- Material: Manufactured from cold-rolled steel.
- Design: Roll-formed, spot-welded box beam construction with lapped and welded corners for maximum rigidity. Side edges feature return-flange construction.

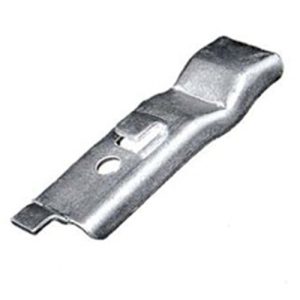

- Installation: Uses our simple Compression Clip system (two tabs fit firmly into post slots) for easy rearrangement. Extra heavy-duty shelves use reinforcing channels and side shelf supports instead of clips.

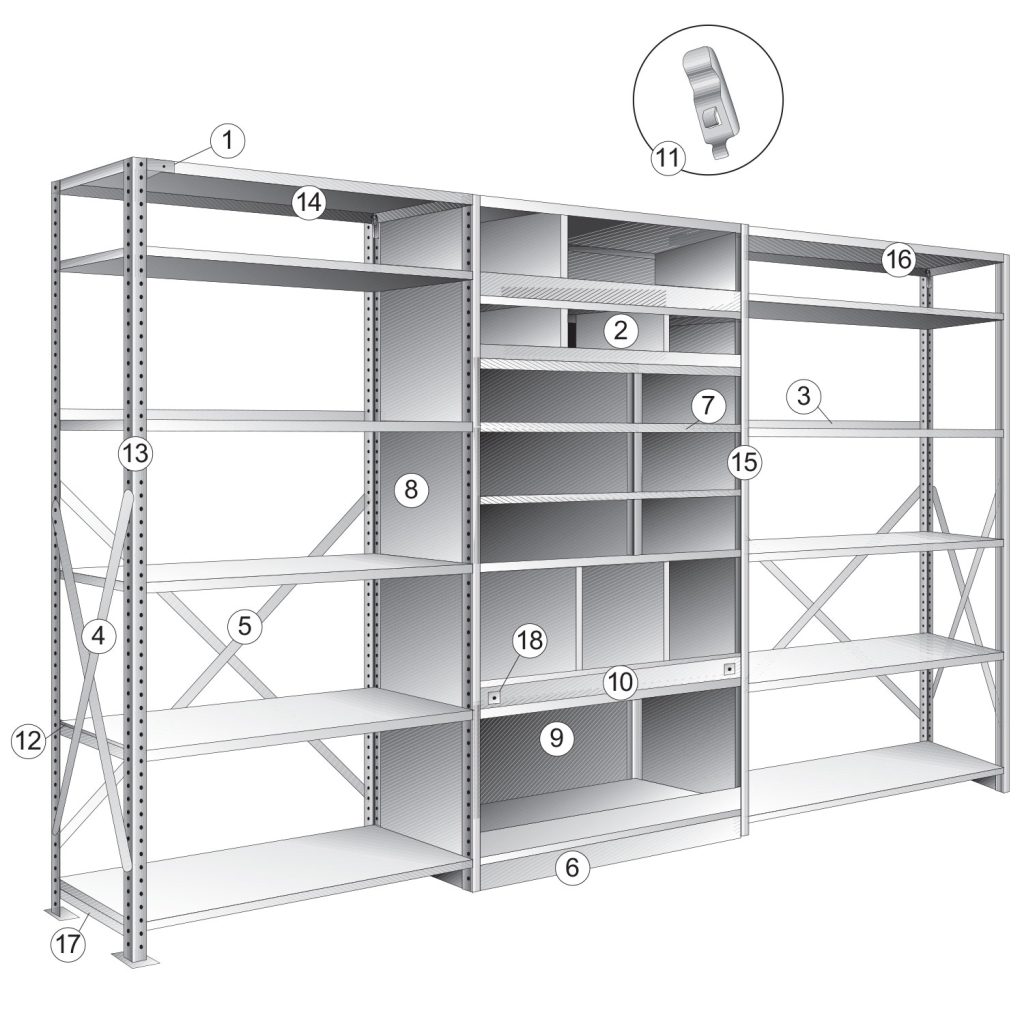

Available Deluxe Shelf Accessories
Deluxe accessories keep materials organized and secure, preventing product loss and increasing retrieval speed:
- Knee Brace
- Standard Divider
- Back Package Stop
- End Sway Braces
- Back Sway Braces
- Base Cover Strip
- Label Holder
- Bin Upright
- Back Panel
- Bin Front
- Shelf Clip
- Flush Bar
- Angle Post
- Industrial-Duty Shelf
- Beaded Post Upright
- Heavy-Duty Shelf
- Side Shelf Support
- Bin Front Clips
- Back Clip
- Cover Plate
When the storage demand is heavy, Deluxe is the proven system. Recognized for setting the industry standard in design and peerless engineering, Deluxe industrial steel shelving provides the structural integrity and 1-inch vertical adjustability needed to maximize every minimal area.

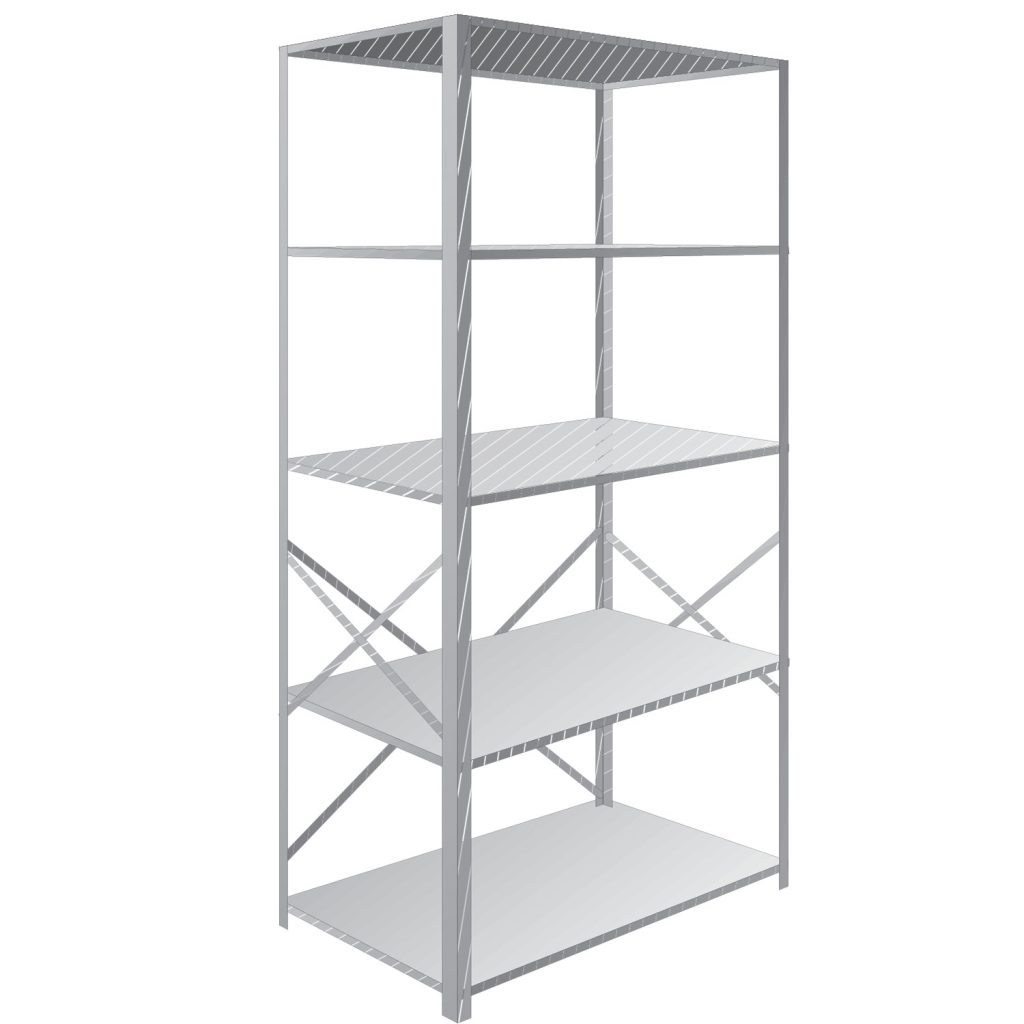

Open Shelving
- The Backbone of Storage: Ready for the most demanding, all-purpose applications.
- Stability: Features side and end-sway braces that provide lock-down rigidity for safe and secure storage of bulky or oversized items.
- Resilience: Engineered to meet the nation’s most demanding seismic specifications.
- Flexibility: Provides three post options (Angle, Beaded, High-Rise Box) to fit any specific structural requirement.

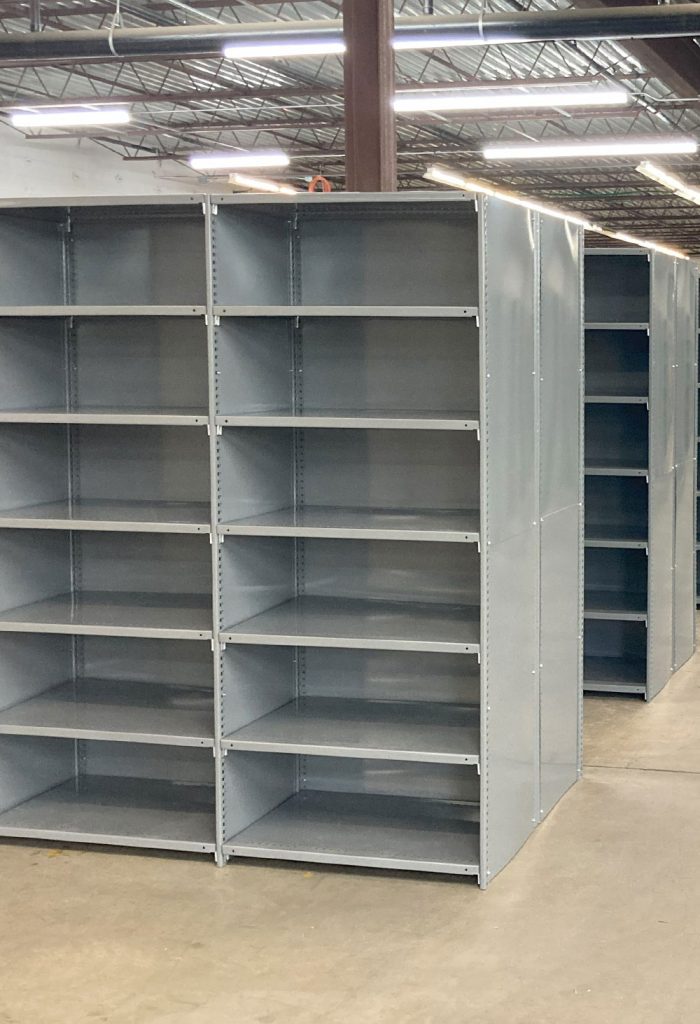

Closed Shelving
- Storeroom to Showroom: Combines structural integrity with a clean, aesthetically pleasing appearance.
- Inventory Control: Rigid metal backing and side panels fully eliminate the problem of mixed products in shared spaces, ensuring products are assigned definite, accurate picking locations.
- Appearance: Panels are available in KD or welded assemblies for high-profile duty, suitable for any application from storeroom to office.

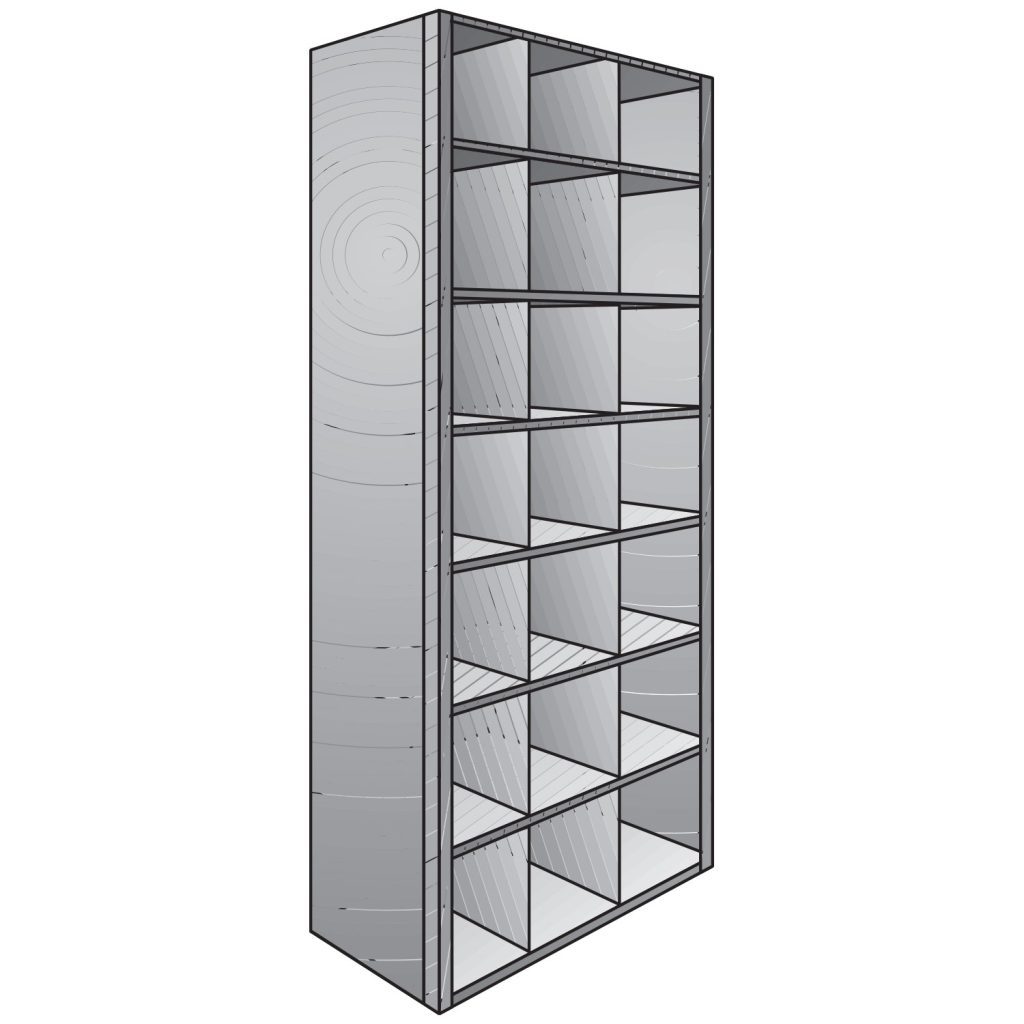

Bin Shelving
- Divide and Conquer Clutter: The perfect solution when categorization, classification, and separation of parts or containers are required.
- Organization: Utilizes full-height repositionable dividers to create adjustable storage bins.
- Adjustability: Individualized compartments are adjustable on 1-inch increments to easily accommodate ever-changing inventory requirements.
